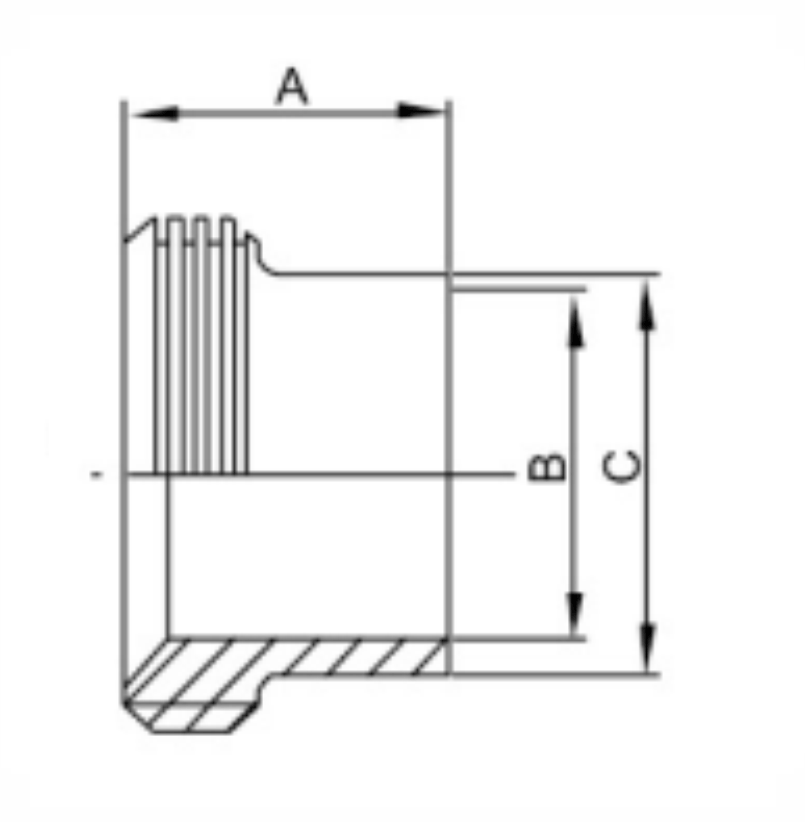

15W Heavy Wall Tank Threaded Bevel Seat Ferrules
| Size | A | B | C | |||
|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | |
| 1" | 1.5 | 38.1 | 0.87 | 22.1 | 1.16 | 29.5 |
| 1.5" | 1.625 | 41.3 | 1.37 | 34.8 | 1.676 | 42.6 |
| 2" | 1.75 | 44.4 | 1.87 | 47.5 | 2.192 | 55.7 |
| 2.5" | 1.75 | 44.4 | 2.37 | 60.2 | 2.708 | 68.8 |
| 3" | 1.812 | 46.0 | 2.87 | 72.9 | 3.224 | 81.9 |
| 4" | 2.125 | 54.0 | 3.834 | 97.4 | 4.256 | 108.1 |
