SMS Unions
SKU: N/A
FITTINGS SPECIFICATIONS….
Size Range: OD.25 through OD.101.6
Materials: 1.4301(304), 1.4404(316L)
Processing: Forging
Machined by CNC
Internal 20Ra(0.51μm)
Working Pressure Range, (Fully Forged Unions):
SIZE 25 – 38 Max. Working Pressure 40 Bar @20°C
SIZE 51 – 76 Max. Working Pressure 25 Bar @20°C
SIZE 101.6 Max. Working Pressure 16 Bar @ 20°C
Size Range: OD.25 through OD.101.6
Materials: 1.4301(304), 1.4404(316L)
Processing: Forging
Machined by CNC
Internal 20Ra(0.51μm)
Working Pressure Range, (Fully Forged Unions):
SIZE 25 – 38 Max. Working Pressure 40 Bar @20°C
SIZE 51 – 76 Max. Working Pressure 25 Bar @20°C
SIZE 101.6 Max. Working Pressure 16 Bar @ 20°C

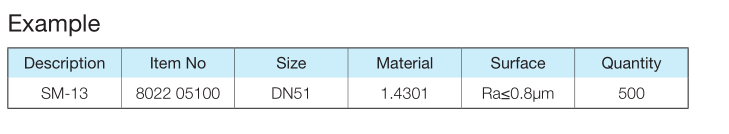

ORDERING
SPECIFICATIONS….
• Description
• Code No.
• Size
• Material
• Surface Polish Requirements
• Quantity
