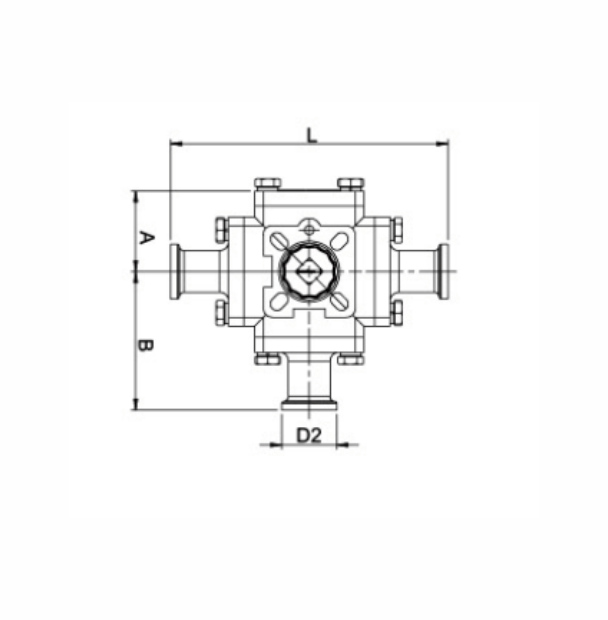

Sanitary Three-way Clamp Ball Valve
| Size | D2 | A | B | L |
|---|---|---|---|---|
| 1/2" | 25.2 | 34 | 59 | 118 |
| 3/4" | 25.2 | 37 | 63.5 | 127 |
| 1" | 50.5 | 41 | 76.3 | 152.6 |
| 1 1/2" | 50.5 | 52.5 | 87.5 | 175 |
| 2" | 64 | 65 | 100.7 | 201.4 |
| 2 1/2" | 77.5 | 75 | 113.85 | 227.7 |
| 3" | 91 | 95 | 130.3 | 260.6 |
| 4" | 119 | 120 | 160 | 320 |
| Size | D2 | A | B | L |
|---|---|---|---|---|
| 1/2" | 25.2 | 34 | 59 | 118 |
| 3/4" | 25.2 | 37 | 63.5 | 127 |
| 1" | 50.5 | 41 | 76.3 | 152.6 |
| 1 1/2" | 50.5 | 52.5 | 87.5 | 175 |
| 2" | 64 | 65 | 100.7 | 201.4 |
| 2 1/2" | 77.5 | 75 | 113.85 | 227.7 |
| 3" | 91 | 95 | 130.3 | 260.6 |
| 4" | 119 | 120 | 160 | 320 |
