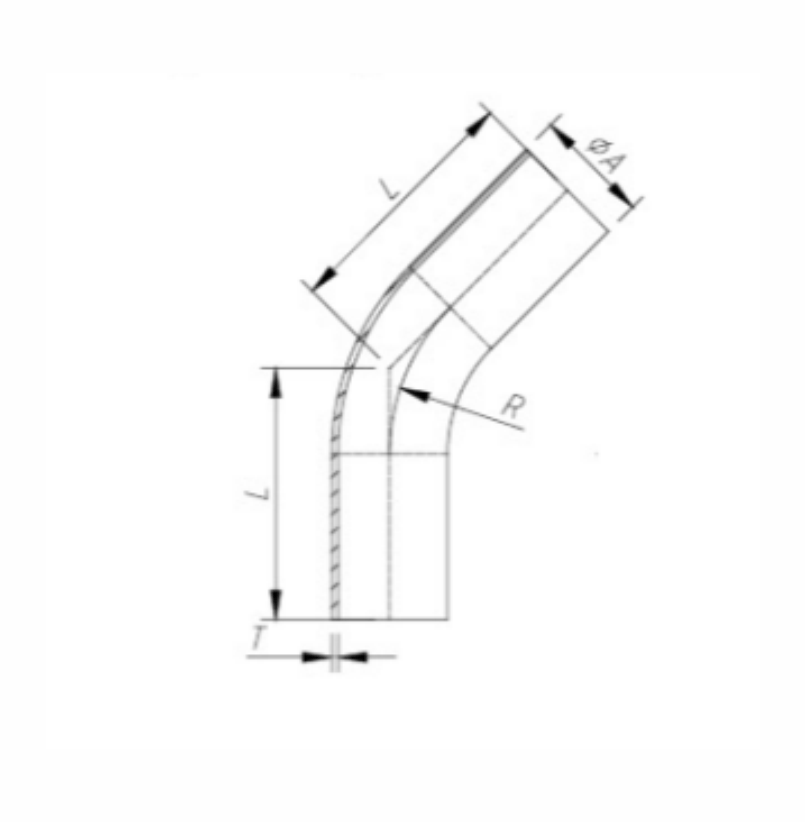

DL2WS Expanding Bend 45°
| DN | A | R | L | T |
|---|---|---|---|---|
| 10 | 12/13 | 26 | 35.8 | 1.5 |
| 15 | 18/19 | 35 | 39.5 | 1.5 |
| 20 | 22/23 | 40 | 41.6 | 1.5 |
| 25 | 28/29 | 50 | 60.7 | 1.5 |
| 32 | 34/35 | 55 | 62.8 | 1.5 |
| 40 | 40/41 | 60 | 64.9 | 1.5 |
| 50 | 52/53 | 70 | 69 | 1.5 |
| 65 | 70 | 80 | 73 | 2 |
| 80 | 85 | 90 | 92.3 | 2 |
| 100 | 104 | 100 | 98.4 | 2 |
| 125 | 129 | 187.5 | 135.2 | 2 |
