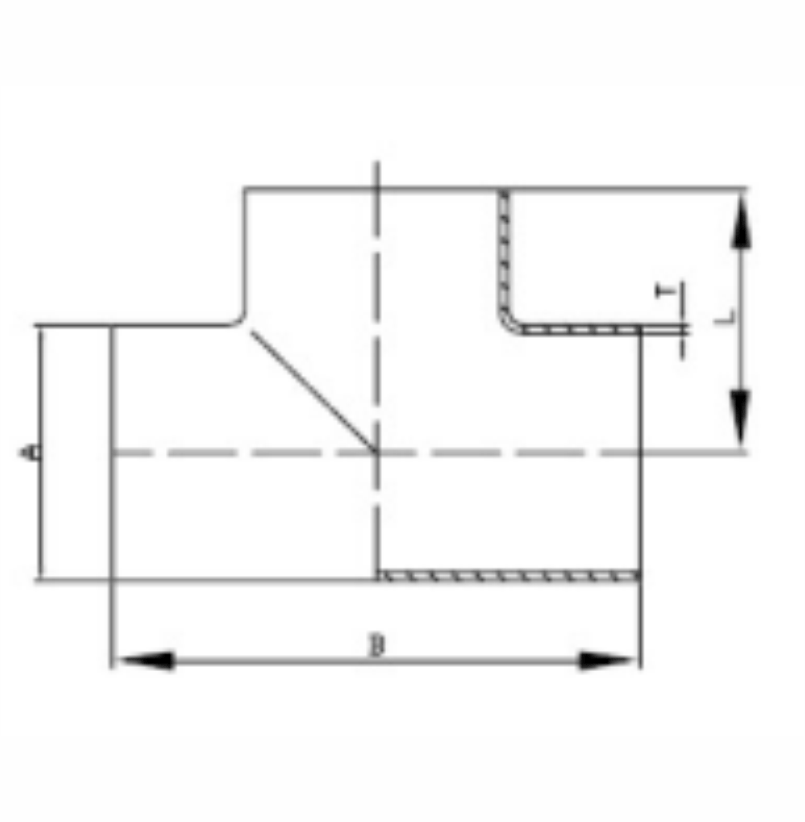

7WWW Short Equal Tee，No Tangent
| Size | A | B | L | T | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | |
| 1.0" | 1.000 | 25.4 | 2.252 | 57.2 | 1.126 | 28.6 | 0.065 | 1.65 |
| 1.5" | 1.500 | 38.1 | 3.315 | 84.2 | 1.657 | 42.1 | 0.065 | 1.65 |
| 2.0" | 2.000 | 50.8 | 4.126 | 104.8 | 2.063 | 52.4 | 0.065 | 1.65 |
| 2.5" | 2.500 | 63.5 | 4.685 | 119.0 | 2.343 | 59.5 | 0.065 | 1.65 |
| 3.0" | 3.000 | 76.2 | 5.189 | 131.8 | 2.594 | 65.9 | 0.065 | 1.65 |
| 4.0" | 4.000 | 101.6 | 6.874 | 174.6 | 3.437 | 87.3 | 0.083 | 2.11 |
| 6.0" | 6.000 | 152.4 | 10 | 254 | 5 | 127 | 0.109 | 2.77 |
| 8.0" | 8.000 | 203.2 | 14 | 356 | 7 | 178 | 0.109 | 2.77 |
