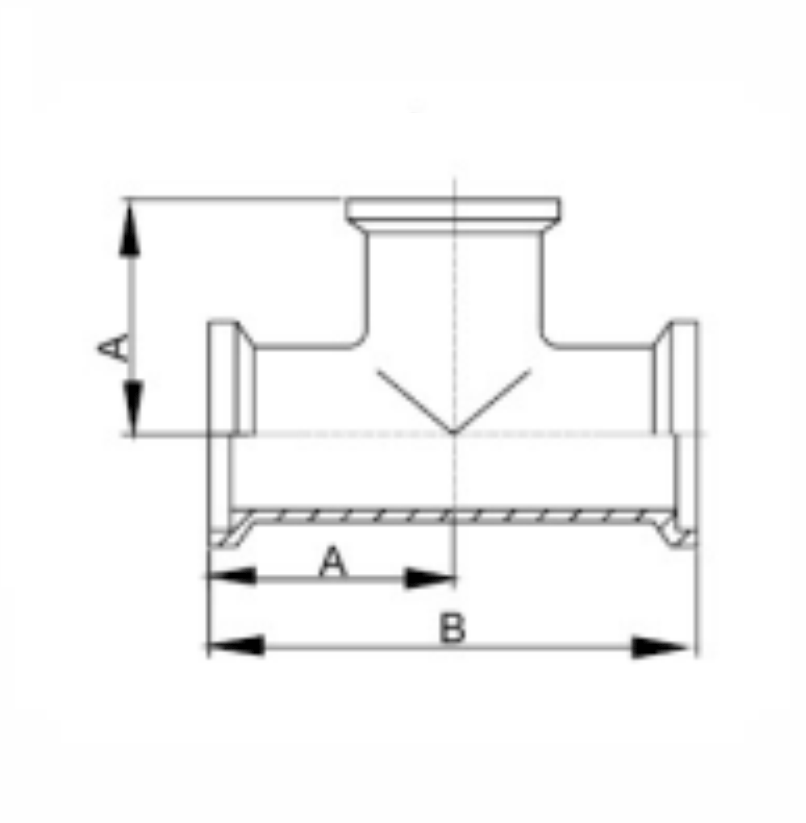

7II-LINE Female Ends Tee
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.911 | 48.5 | 3.822 | 97.1 |
| 1.5" | 2.598 | 66.0 | 5.196 | 132.0 |
| 2" | 3.099 | 78.7 | 6.198 | 157.4 |
| 2.5" | 3.505 | 89.0 | 7.01 | 178.0 |
| 3" | 3.817 | 96.9 | 7.634 | 193.9 |
| 4" | 4.786 | 121.6 | 9.572 | 243.1 |
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.911 | 48.5 | 3.822 | 97.1 |
| 1.5" | 2.598 | 66.0 | 5.196 | 132.0 |
| 2" | 3.099 | 78.7 | 6.198 | 157.4 |
| 2.5" | 3.505 | 89.0 | 7.01 | 178.0 |
| 3" | 3.817 | 96.9 | 7.634 | 193.9 |
| 4" | 4.786 | 121.6 | 9.572 | 243.1 |
