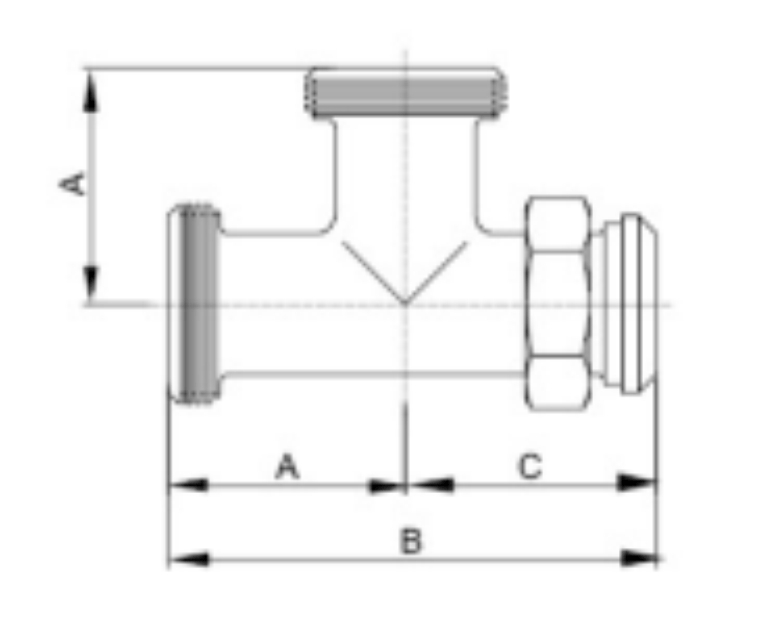

7A&7B TEE
| Size | A | B | C | |||
|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | |
| 1" | 1.81 | 46.0 | 3.63 | 92.2 | 2.69 | 68.3 |
| 1.5" | 2.34 | 59.4 | 4.69 | 119.1 | 3.41 | 86.6 |
| 2" | 2.78 | 70.6 | 5.56 | 141.2 | 3.71 | 94.2 |
| 2.5" | 3.19 | 81.0 | 6.38 | 162.1 | 4.25 | 108.0 |
| 3" | 3.53 | 64.3 | 7.06 | 179.3 | 4.63 | 117.6 |
| 4" | 4.66 | 118.4 | 9.31 | 236.5 | 6.13 | 155.7 |
