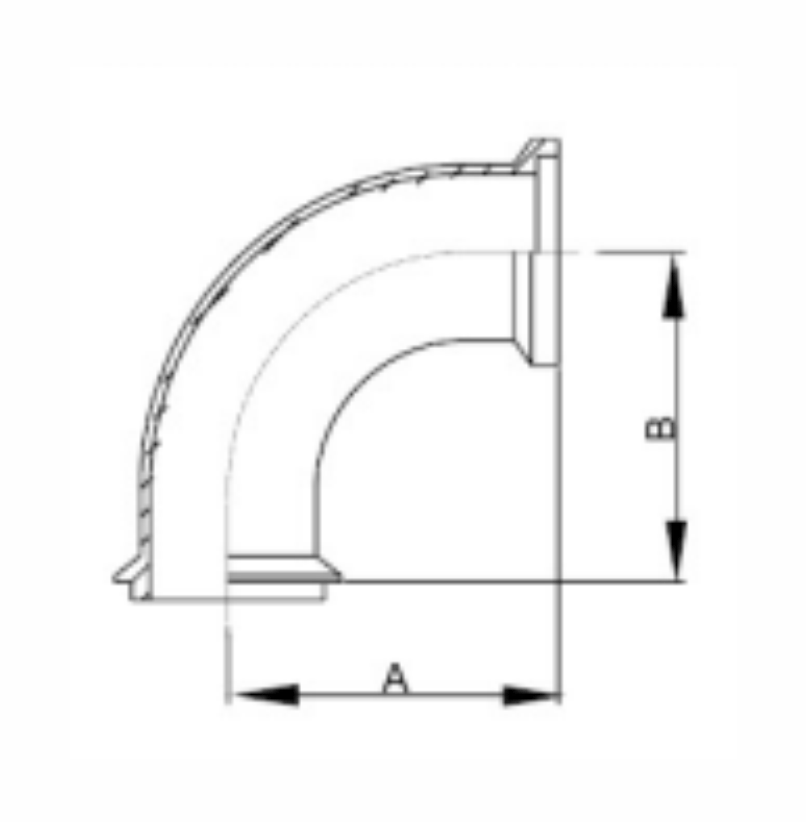

2FII-LINE Female X Male End 90 Degree Elbow
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 2.281 | 57.9 | 2.093 | 53.2 |
| 1.5" | 3.188 | 81.0 | 3 | 76.2 |
| 2" | 4.031 | 102.4 | 3.78 | 96.0 |
| 2.5" | 4.906 | 124.6 | 4.6 | 116.8 |
| 3" | 5.718 | 145.2 | 5.41 | 137.4 |
| 4" | 7.344 | 186.5 | 7.031 | 178.6 |
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 2.281 | 57.9 | 2.093 | 53.2 |
| 1.5" | 3.188 | 81.0 | 3 | 76.2 |
| 2" | 4.031 | 102.4 | 3.78 | 96.0 |
| 2.5" | 4.906 | 124.6 | 4.6 | 116.8 |
| 3" | 5.718 | 145.2 | 5.41 | 137.4 |
| 4" | 7.344 | 186.5 | 7.031 | 178.6 |
