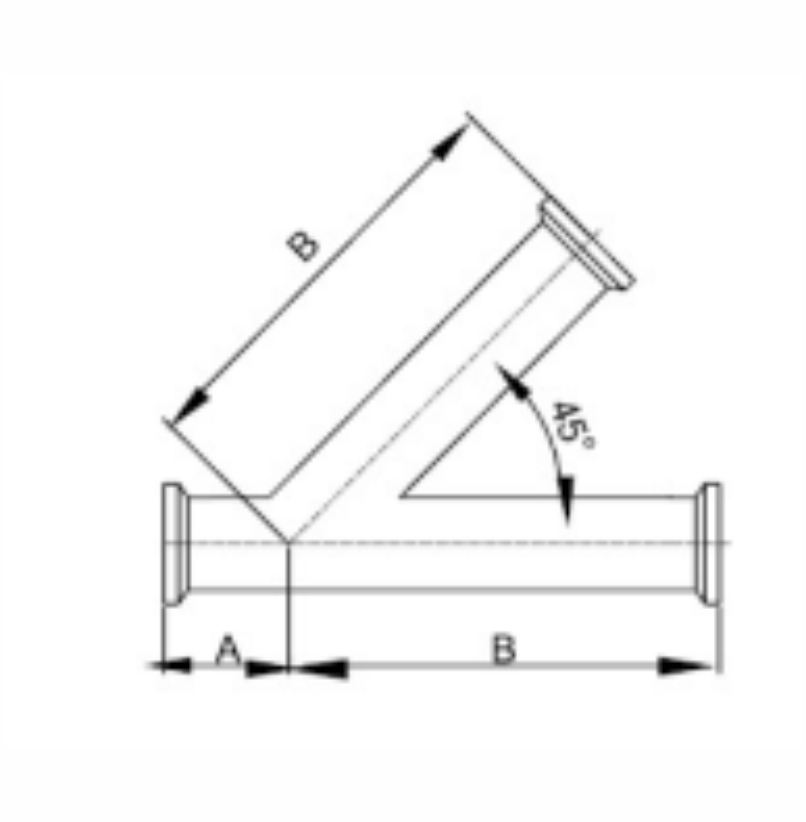

28AII-LINE Female Ends Lateral Wye
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.786 | 45.4 | 5.786 | 147.0 |
| 1.5" | 2.132 | 54.1 | 7.132 | 181.1 |
| 2" | 2.656 | 67.5 | 8.156 | 207.2 |
| 2.5" | 2.661 | 67.6 | 9.661 | 245.4 |
| 3" | 3.103 | 78.8 | 10.103 | 256.6 |
| 4" | 3.408 | 86.6 | 12.148 | 308.5 |
| size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.786 | 45.4 | 5.786 | 147.0 |
| 1.5" | 2.132 | 54.1 | 7.132 | 181.1 |
| 2" | 2.656 | 67.5 | 8.156 | 207.2 |
| 2.5" | 2.661 | 67.6 | 9.661 | 245.4 |
| 3" | 3.103 | 78.8 | 10.103 | 256.6 |
| 4" | 3.408 | 86.6 | 12.148 | 308.5 |
