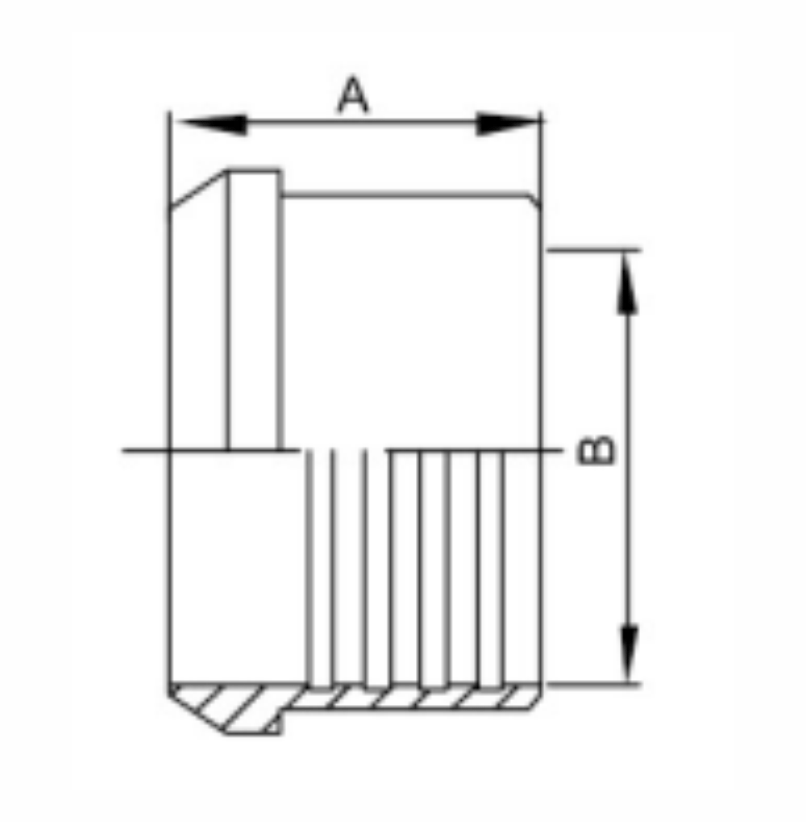

14R Recessless（Roll-on) Plain Bevel Seat Weld Ferrules for Expanding
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 0.75 | 19.05 | 1 | 25.4 |
| 1.5" | 1.125 | 28.6 | 1.5 | 38.1 |
| 2" | 1.312 | 33.3 | 2 | 50.8 |
| 2.5" | 1.375 | 34.9 | 2.5 | 63.5 |
| 3" | 1.437 | 36.5 | 3 | 76.2 |
| 4" | 1.5 | 38.1 | 4 | 101.6 |
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 0.75 | 19.05 | 1 | 25.4 |
| 1.5" | 1.125 | 28.6 | 1.5 | 38.1 |
| 2" | 1.312 | 33.3 | 2 | 50.8 |
| 2.5" | 1.375 | 34.9 | 2.5 | 63.5 |
| 3" | 1.437 | 36.5 | 3 | 76.2 |
| 4" | 1.5 | 38.1 | 4 | 101.6 |
