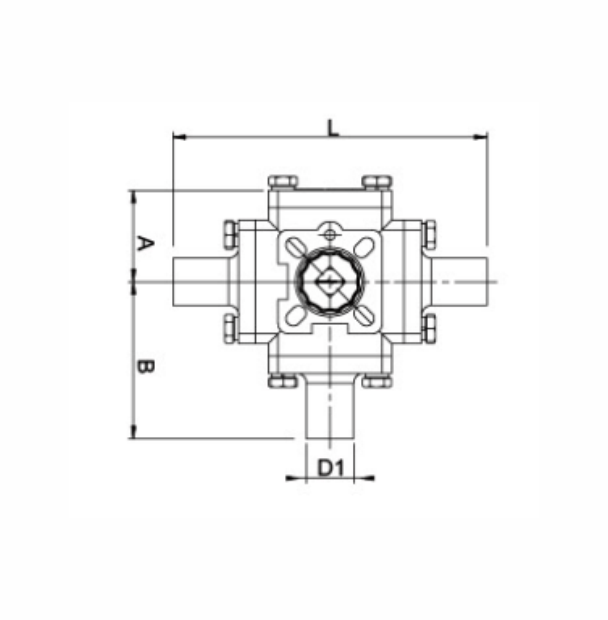

Sanitary Three-way Weld Ball Valve
| Size | D1 | A | B | L |
|---|---|---|---|---|
| 1/2" | 12.7 | 34 | 59 | 118 |
| 3/4" | 19.05 | 37 | 63.5 | 127 |
| 1" | 25.4 | 41 | 76.3 | 152.6 |
| 1 1/2" | 38.1 | 52.5 | 87.5 | 175 |
| 2" | 50.8 | 65 | 100.7 | 201.4 |
| 2 1/2" | 63.5 | 75 | 113.85 | 227.7 |
| 3" | 76.2 | 95 | 130.3 | 260.6 |
| 4" | 101.6 | 120 | 160 | 320 |
| Size | D1 | A | B | L |
|---|---|---|---|---|
| 1/2" | 12.7 | 34 | 59 | 118 |
| 3/4" | 19.05 | 37 | 63.5 | 127 |
| 1" | 25.4 | 41 | 76.3 | 152.6 |
| 1 1/2" | 38.1 | 52.5 | 87.5 | 175 |
| 2" | 50.8 | 65 | 100.7 | 201.4 |
| 2 1/2" | 63.5 | 75 | 113.85 | 227.7 |
| 3" | 76.2 | 95 | 130.3 | 260.6 |
| 4" | 101.6 | 120 | 160 | 320 |
