| Working pressure: |
2 bar (30psi) |
| Cleaning diameter: |
max. 4 m |
| Flow rate: |
5.6m³/h - 12m³/h |
| Spray angle: |
360° |
| Operating temperature: |
max. 90 °C (194 °F) |
| Ambient temperature/SIP: |
max. 140 °C (284 °F), 30 min |
| Materials: |
stainless steel 316L (1.4404) / 304 (1.4301) |
| Preferred mounting position: |
vertical down |

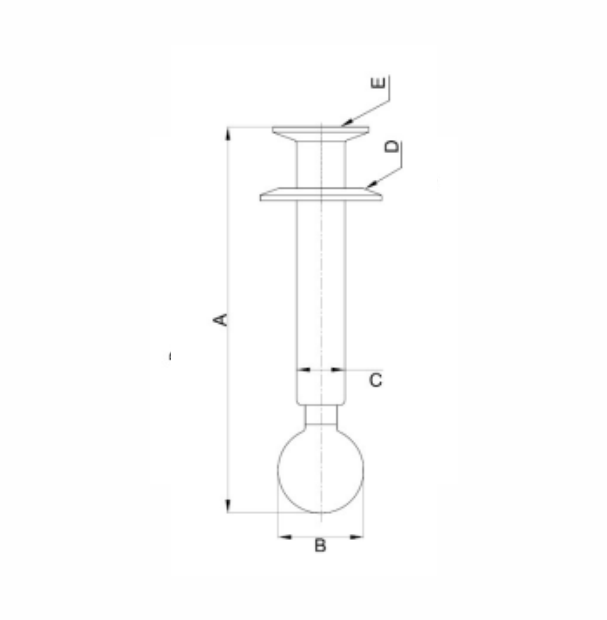

| Size |
A |
B |
C |
D |
E |
| 11"x2.5"x1.5" |
11"(279.4mm) |
1.75"/2.08"(44mm/53mm) |
1.5"(38.1mm) |
2.5" TC |
1.5" TC |
| 16"x2.5"x1.5" |
16"(406.4mm) |
1.75"/2.08"(44mm/53mm) |
1.5"(38.1mm) |
2.5" TC |
1.5" TC |
| 24"x2.5"x1.5" |
24"(609.6mm) |
1.75"/2.08"(44mm/53mm) |
1.5"(38.1mm) |
2.5" TC |
1.5" TC |
| 24"x3"x1.5" |
24"(609.6mm) |
1.75"/2.08"(44mm/53mm) |
1.5"(38.1mm) |
3" TC |
1.5" TC |
