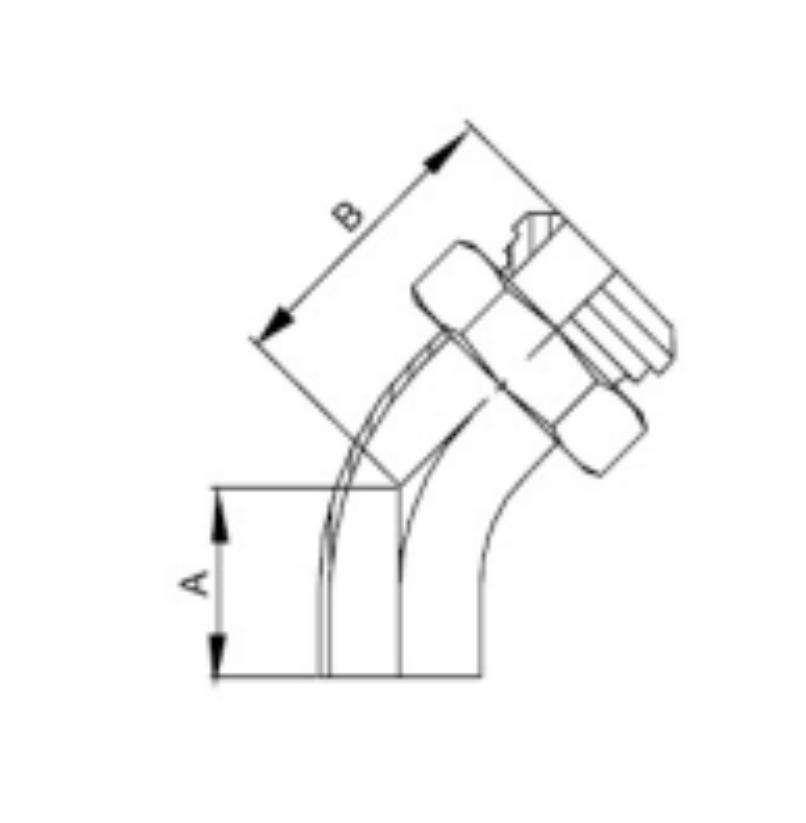

L2P Weld X Plain Bevel Seat 45 Degree Elbow
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.188 | 30.2 | 1.875 | 47.6 |
| 1.5" | 1.625 | 41.3 | 2.344 | 59.5 |
| 2" | 2.312 | 58.7 | 3.035 | 77.1 |
| 2.5" | 3 | 76.2 | 3.844 | 97.6 |
| 3" | 3.688 | 93.7 | 4.59 | 116.6 |
| 4" | 4.812 | 122.2 | 5.812 | 147.6 |
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.188 | 30.2 | 1.875 | 47.6 |
| 1.5" | 1.625 | 41.3 | 2.344 | 59.5 |
| 2" | 2.312 | 58.7 | 3.035 | 77.1 |
| 2.5" | 3 | 76.2 | 3.844 | 97.6 |
| 3" | 3.688 | 93.7 | 4.59 | 116.6 |
| 4" | 4.812 | 122.2 | 5.812 | 147.6 |
