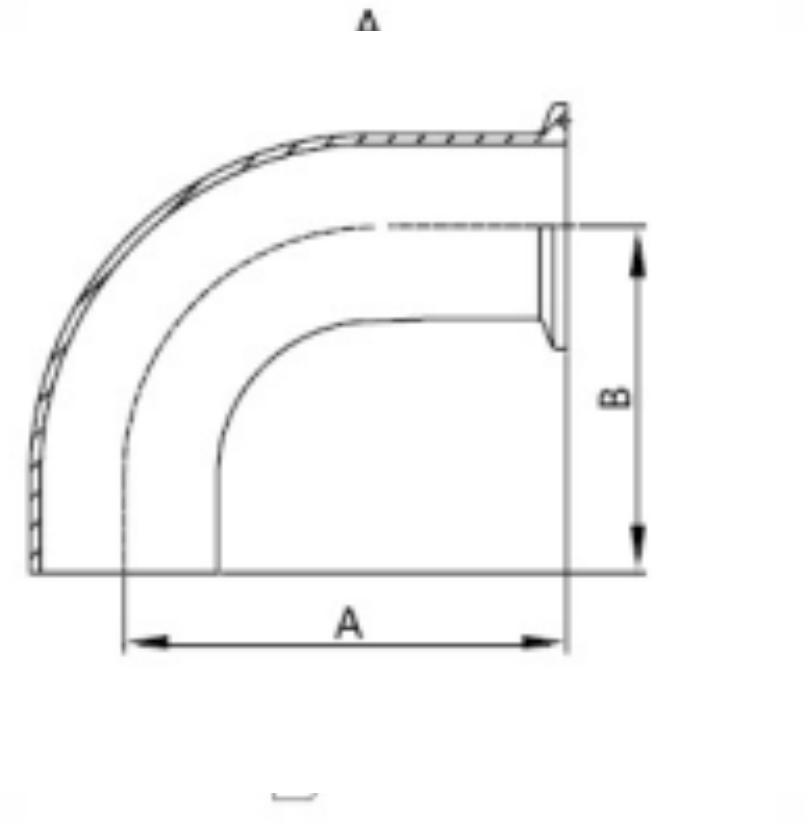

L2CM Weld X Tri-Clamp 90 ° Elbow
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 2.563 | 65.1 | 2.063 | 52.4 |
| 1.5" | 3.438 | 87.3 | 2.938 | 74.6 |
| 2" | 4.563 | 115.9 | 4.063 | 103.2 |
| 2.5" | 5.688 | 144.5 | 5.188 | 131.8 |
| 3" | 6.813 | 173.0 | 6.313 | 160.3 |
| 4" | 8.938 | 227.0 | 8.313 | 211.1 |
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 2.563 | 65.1 | 2.063 | 52.4 |
| 1.5" | 3.438 | 87.3 | 2.938 | 74.6 |
| 2" | 4.563 | 115.9 | 4.063 | 103.2 |
| 2.5" | 5.688 | 144.5 | 5.188 | 131.8 |
| 3" | 6.813 | 173.0 | 6.313 | 160.3 |
| 4" | 8.938 | 227.0 | 8.313 | 211.1 |
