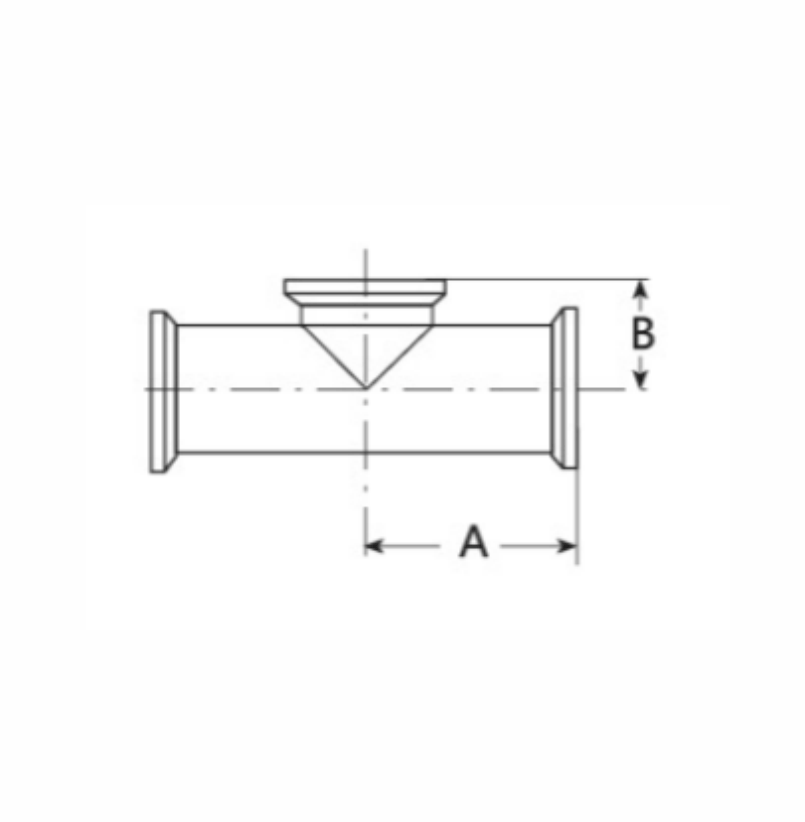

DT-27 Short Outlet Tee Clamp End
| Size | Dimensions | |||
|---|---|---|---|---|
| A in. | A mm | B in. | B mm | |
| 1/2 | 2.250 | 57.2 | 1.000 | 25.4 |
| 3/4 | 2.375 | 60.3 | 1.125 | 28.6 |
| *1 | 2.625 | 66.7 | 1.125 | 28.6 |
| 1 1/2 | 2.875 | 73.0 | 1.375 | 34.9 |
| 2 | 3.375 | 85.7 | 1.625 | 41.3 |
| 2 1/2 | 3.625 | 92.1 | 1.875 | 47.6 |
| 3 | 3.875 | 98.4 | 2.125 | 54.0 |
| 4 | 4.750 | 120.7 | 2.750 | 69.9 |
| 6 | 7.125 | 181.0 | 4.625 | 117.5 |
