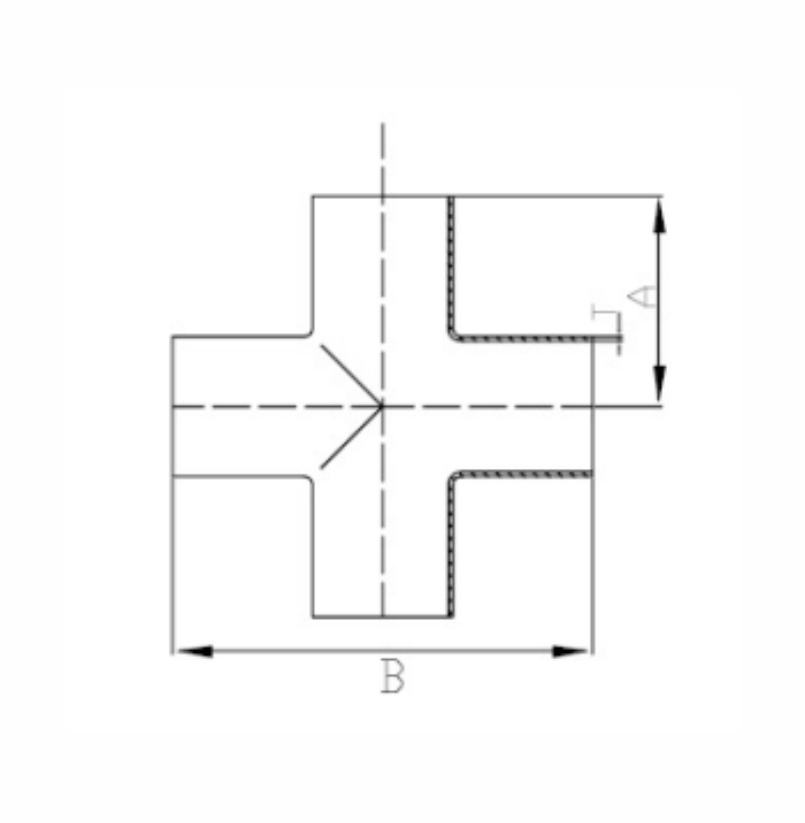

9W Long Equal Cross
| Size | A | B | t | |||
|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | |
| 1" | 1.875 | 47.6 | 3.75 | 95.2 | 0.065 | 1.65 |
| 1.5" | 2.25 | 57.1 | 4.5 | 114.3 | 0.065 | 1.65 |
| 2" | 3 | 76.2 | 6 | 152.4 | 0.065 | 1.65 |
| 2.5" | 3 | 76.2 | 6 | 152.4 | 0.065 | 1.65 |
| 3" | 3.25 | 82.5 | 6.5 | 165.1 | 0.065 | 1.65 |
| 4" | 3.875 | 98.4 | 7.75 | 196.8 | 0.083 | 2.11 |
