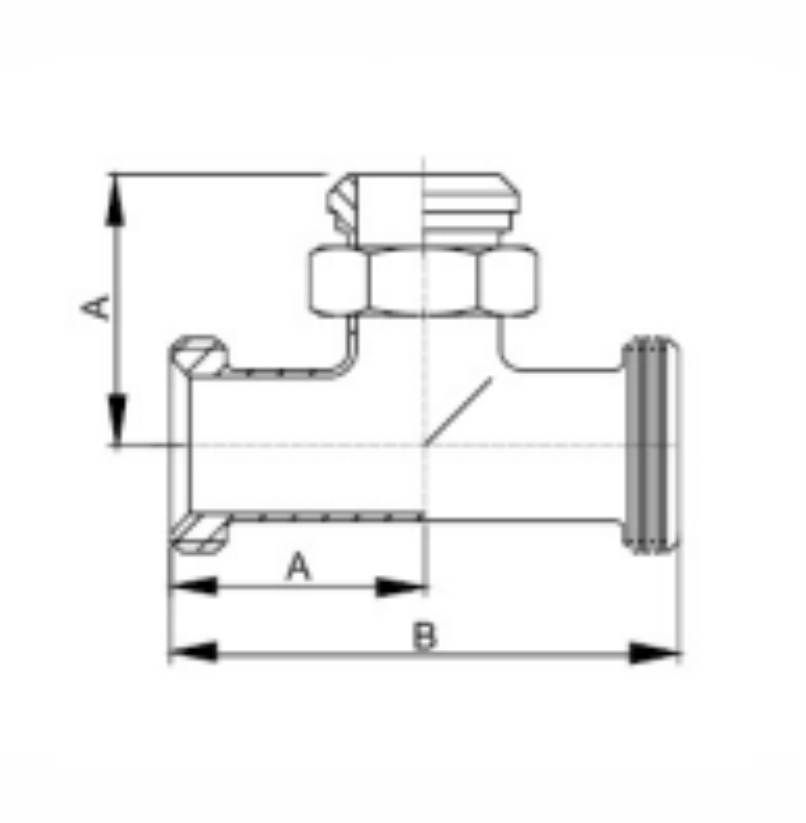

7A Thread X Thread X Plain Bevel Seat Outlet Equal Tee
| Size | A | B | C | |||
|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | |
| 1" | 1.813 | 46.0 | 3.626 | 92.1 | 1.812 | 46.0 |
| 1.5" | 2.375 | 60.3 | 4.75 | 120.6 | 2.375 | 60.3 |
| 2" | 2.813 | 71.4 | 5.626 | 142.9 | 2.78 | 70.8 |
| 2.5" | 3.188 | 81.0 | 6.376 | 161.9 | 3.188 | 81.0 |
| 3" | 3.527 | 89.6 | 7.054 | 179.2 | 3.5 | 88.9 |
| 4" | 4.657 | 118.3 | 9.314 | 236.6 | 4.438 | 112.7 |
