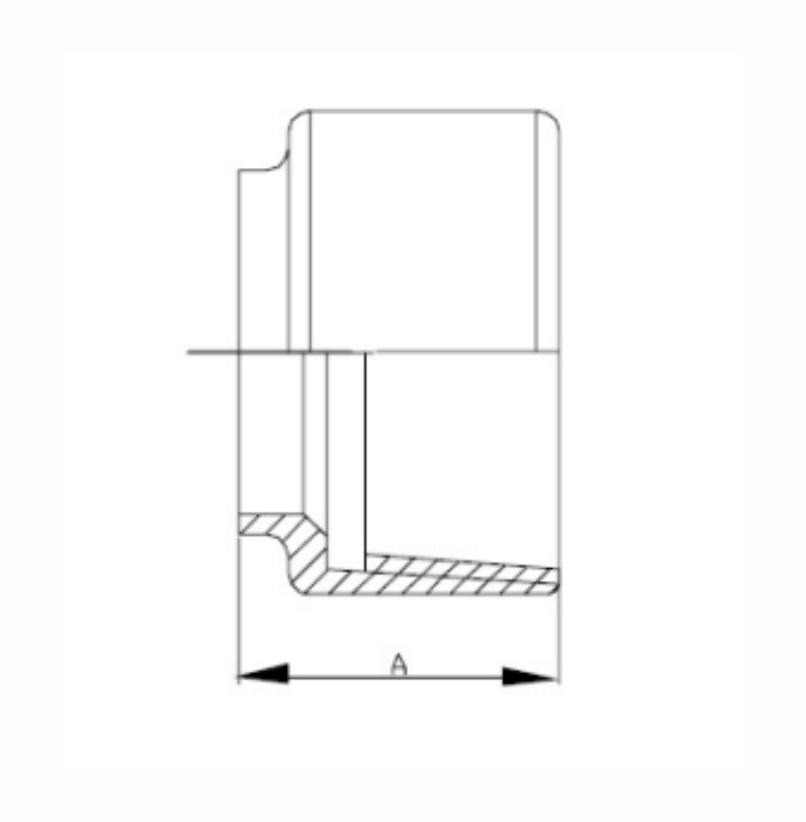

22WB Weld X Female NPT Adapter
| Size | A | |
|---|---|---|
| inch | mm | |
| 0.5" | 1.25 | 31.7 |
| 0.75" | 1.625 | 41.3 |
| 1" | 1.75 | 44.4 |
| 1.5" | 1.75 | 44.4 |
| 2" | 1.812 | 46.0 |
| 2.5" | 2.312 | 58.7 |
| 3" | 2.5 | 63.5 |
| 4" | 2.5 | 63.5 |
| Size | A | |
|---|---|---|
| inch | mm | |
| 0.5" | 1.25 | 31.7 |
| 0.75" | 1.625 | 41.3 |
| 1" | 1.75 | 44.4 |
| 1.5" | 1.75 | 44.4 |
| 2" | 1.812 | 46.0 |
| 2.5" | 2.312 | 58.7 |
| 3" | 2.5 | 63.5 |
| 4" | 2.5 | 63.5 |
