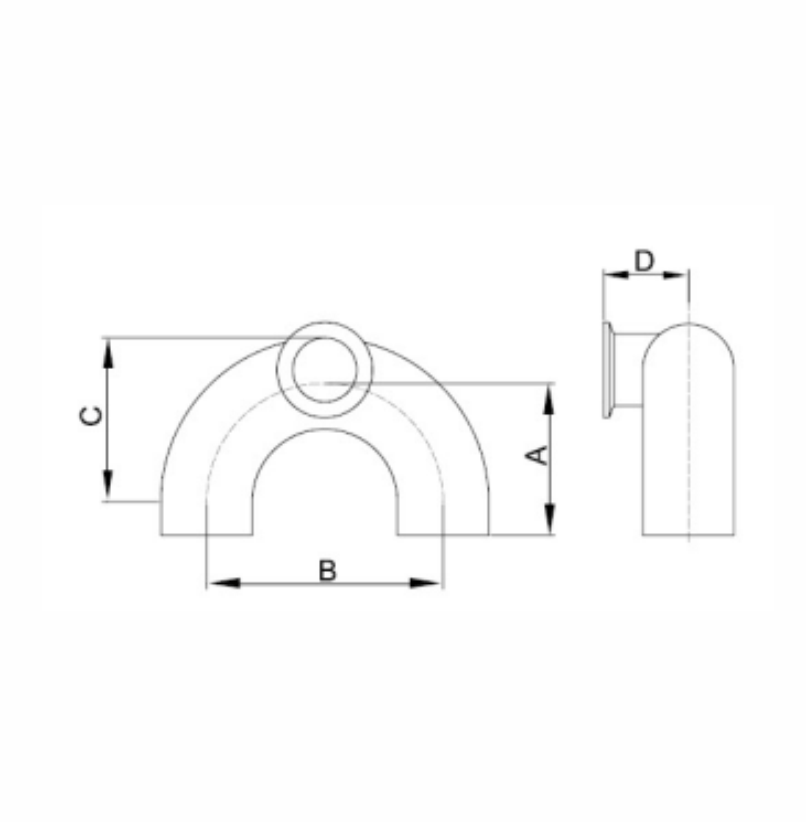

180 ° Side Outlet Use-Point Fitting
| Size | A | B | C | D | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | |
| 1"×0.75" | 3.75 | 95.2 | 4.5 | 114.3 | 3.88 | 98.6 | 1.25 | 31.8 |
| 1.5"×0.75" | 4.5 | 114.3 | 6 | 152.4 | 4.88 | 124.0 | 1.75 | 44.5 |
| 1.5"×1" | 4.5 | 114.3 | 6 | 152.4 | 4.75 | 120.7 | 1.75 | 44.5 |
| 2"×0.75" | 5 | 127 | 6 | 152.4 | 5.63 | 143.0 | 1.75 | 44.5 |
| 2"×1" | 5 | 127 | 6 | 152.4 | 5.5 | 139.7 | 1.75 | 44.5 |
| 2"×1.5" | 5 | 127 | 6 | 152.4 | 5.25 | 133.4 | 1.75 | 44.5 |
| 2.5"×1" | 5.75 | 146.0 | 7.5 | 190.5 | 6.5 | 165.1 | 1.75 | 44.5 |
| 2.5"×1.5" | 5.75 | 146.0 | 7.5 | 190.5 | 6.25 | 158.8 | 1.75 | 44.5 |
| 2.5"×2" | 5.75 | 146.0 | 7.5 | 190.5 | 6 | 152.4 | 2.25 | 57.2 |
| 3"×1" | 6.5 | 165.1 | 9 | 228.6 | 7.5 | 190.5 | 2.25 | 57.2 |
| 3"×1.5" | 6.5 | 165.1 | 9 | 228.6 | 7.25 | 184.2 | 2.25 | 57.2 |
| 3"×2" | 6.5 | 165.1 | 9 | 228.6 | 7 | 177.8 | 2.25 | 57.2 |
| 3"×2.5" | 6.5 | 165.1 | 9 | 228.6 | 6.75 | 171.5 | 2.25 | 57.2 |
| 4"×1" | 8.5 | 215.9 | 12 | 304.8 | 10 | 254.0 | - | - |
| 4"×1.5" | 8.5 | 215.9 | 12 | 304.8 | 9.75 | 247.7 | - | - |
| 4"×2" | 8.5 | 215.9 | 12 | 304.8 | 9.5 | 241.3 | - | - |
| 4"×2.5" | 8.5 | 215.9 | 12 | 304.8 | 9.25 | 235.0 | - | - |
| 4"×3" | 8.5 | 215.9 | 12 | 304.8 | 9 | 228.6 | - | - |
