180 ° Bottom Outlet Use Point Fitting

180 ° Bottom Outlet Use Point Fitting
SKU: 180BOUPF-064
Request A Quote
Product details coming soon.

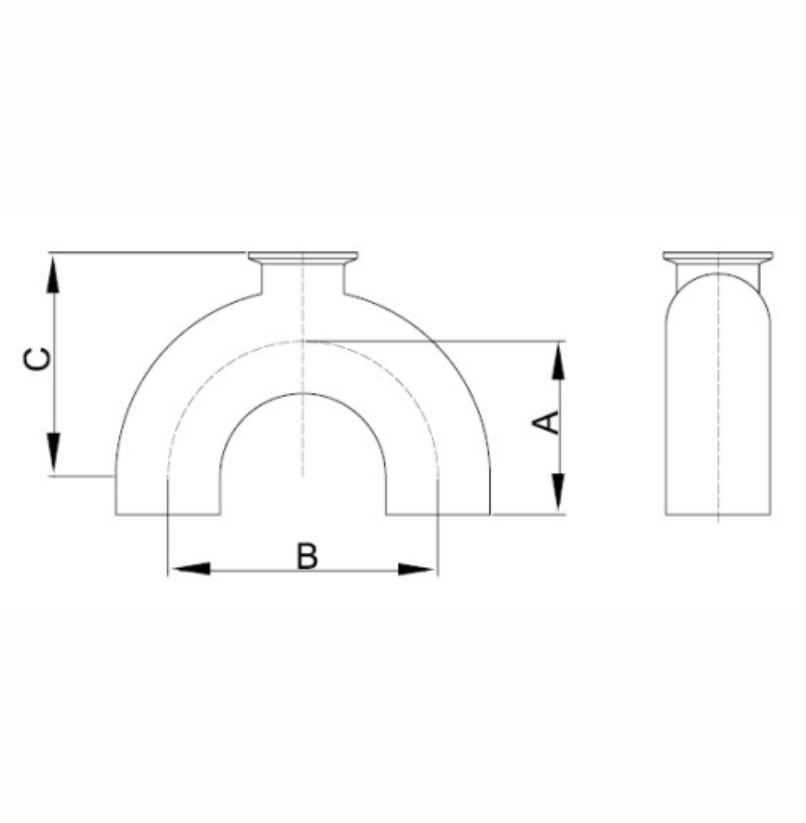

Size A B C
inch mm inch mm inch mm
1"×0.5" 3.75 95.25 4.5 114.3 5 127.0
1"×0.75" 3.75 95.25 4.5 114.3 5 127.0
1.5"×0.5" 4.5 114.3 6 152.4 6 152.4
1.5"×0.75" 4.5 114.3 6 152.4 6 152.4
1.5"×1" 4.5 114.3 6 152.4 6.13 155.7
2"×0.5" 5 127 6 152.4 6.75 171.5
2"×0.75" 5 127 6 152.4 6.75 171.5
2"×1" 5 127 6 152.4 7 177.8
2"×1.5" 5 127 6 152.4 6.75 171.5
2.5"×0.5" 5.75 146.05 7.5 190.5 7.75 177.8
2.5"×0.75" 5.75 146.05 7.5 190.5 7.75 171.5
2.5"×1" 5.75 146.05 7.5 190.5 7.94 196.9
2.5"×1.5" 5.75 146.05 7.5 190.5 8.13 206.5
2.5"×2" 5.75 146.05 7.5 190.5 8.13 206.5
3"×0.5" 6.5 165.1 9 228.6 8.75 222.3
3"×0.75" 6.5 165.1 9 228.6 8.75 222.3
3"×1" 6.5 165.1 9 228.6 9 228.6
3"×1.5" 6.5 165.1 9 228.6 8.81 223.8
3"×2" 6.5 165.1 9 228.6 8.75 222.3
3"×2.5" 6.5 165.1 9 228.6 9.13 231.9
4"×0.5" 8.5 215.9 12 304.8 11.25 285.8
4"×0.75" 8.5 215.9 12 304.8 11.25 285.8
4"×1" 8.5 215.9 12 304.8 11.56 293.6
4"×1.5" 8.5 215.9 12 304.8 11.44 290.6
4"×2" 8.5 215.9 12 304.8 11.25 285.8
4"×2.5" 8.5 215.9 12 304.8 11.63 295.4
4"×3" 8.5 215.9 12 304.8 11.63 295.4
