14WMP Short Weld Ferrule

14WMP Short Weld Ferrule
SKU: 14WMP-SWF-020
Request A Quote
Product details coming soon.

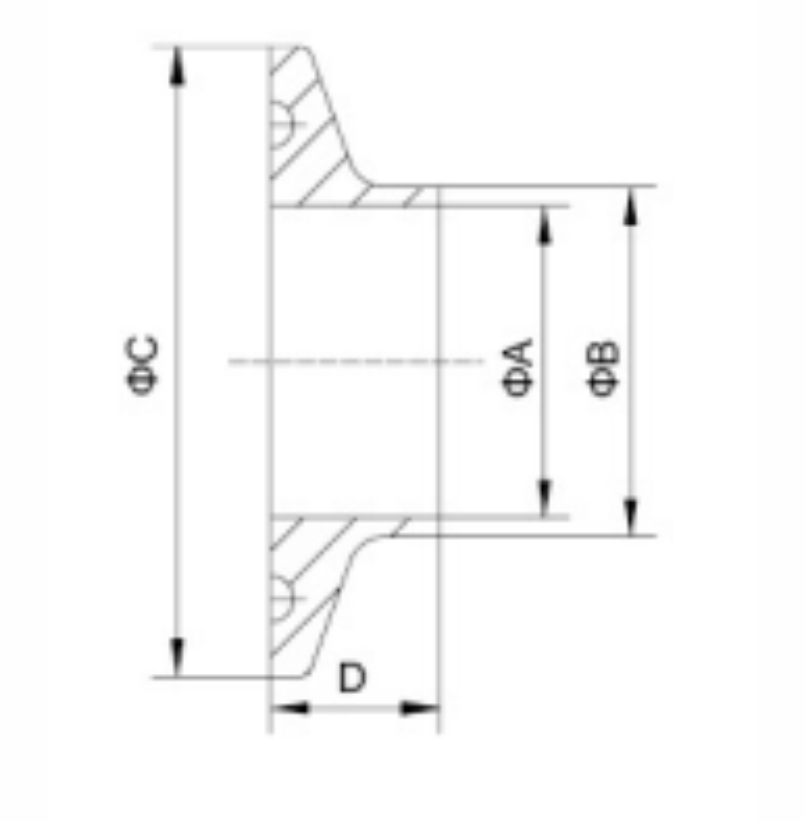

Size A B C D
inch mm inch mm inch mm inch mm
0.5" 0.370 9.4 0.500 12.7 0.992 25.2 0.500 12.7
0.75" 0.620 15.75 0.750 19.05 0.992 25.2 0.500 12.7
1" 0.870 22.1 1.000 25.4 1.988 50.5 0.500 12.7
1.5" 1.370 34.8 1.500 38.1 1.988 50.5 0.500 12.7
2" 1.870 47.5 2.000 50.8 2.520 64.0 0.500 12.7
2.5" 2.370 60.2 2.500 63.5 3.071 78.0 0.500 12.7
3" 2.870 72.9 3.000 76.2 3.583 91.0 0.500 12.7
4" 3.834 97.4 4.000 101.6 4.685 119.0 0.625 15.8
6" 5.782 146.9 6.000 152.4 6.567 166.8 0.875 22.2
8" 7.760 197.1 8.000 203.2 8.571 217.7 0.875 22.2
10" 9.782 248.5 10.000 254.0 10.571 268.5 0.875 22.2
12" 11.760 298.7 12.000 304.8 12.571 319.3 0.875 22.2
