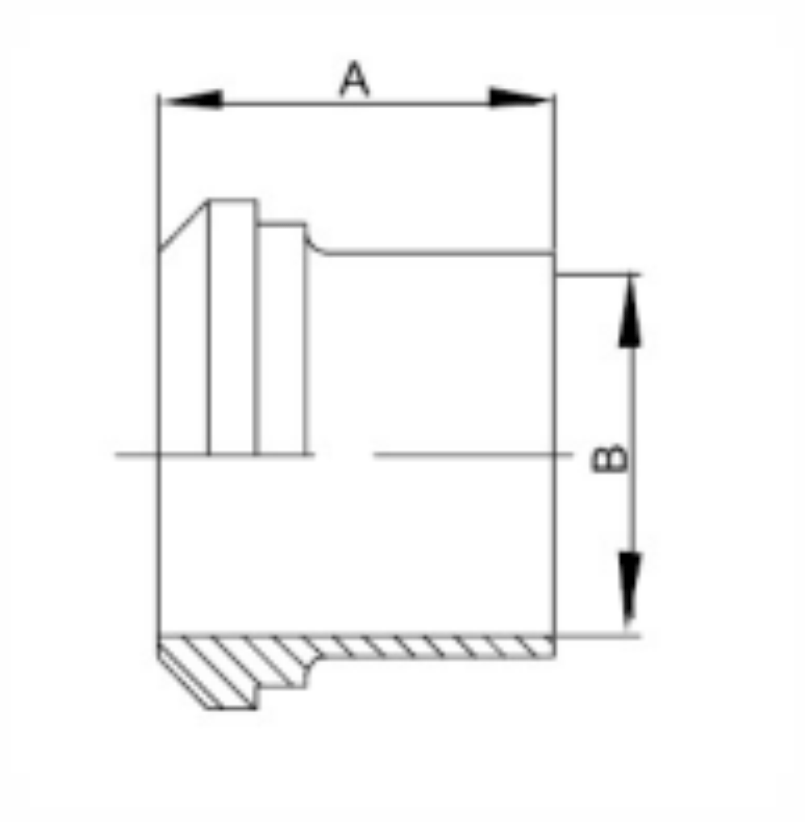

14A Long Plain Bevel Seat Weld Ferrules
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.375 | 34.9 | 0.87 | 22.1 |
| 1.5" | 1.5 | 38.1 | 1.37 | 34.8 |
| 2" | 1.5 | 38.1 | 1.87 | 47.5 |
| 2.5" | 1.75 | 44.4 | 2.37 | 60.2 |
| 3" | 1.75 | 44.4 | 2.87 | 72.9 |
| 4" | 1.75 | 44.4 | 3.834 | 97.4 |
| Size | A | B | ||
|---|---|---|---|---|
| inch | mm | inch | mm | |
| 1" | 1.375 | 34.9 | 0.87 | 22.1 |
| 1.5" | 1.5 | 38.1 | 1.37 | 34.8 |
| 2" | 1.5 | 38.1 | 1.87 | 47.5 |
| 2.5" | 1.75 | 44.4 | 2.37 | 60.2 |
| 3" | 1.75 | 44.4 | 2.87 | 72.9 |
| 4" | 1.75 | 44.4 | 3.834 | 97.4 |
